180-Degree Inside Connector – 40 Series

180-Degree Inside Connector – 40 Series: Seamless Linear Extensions

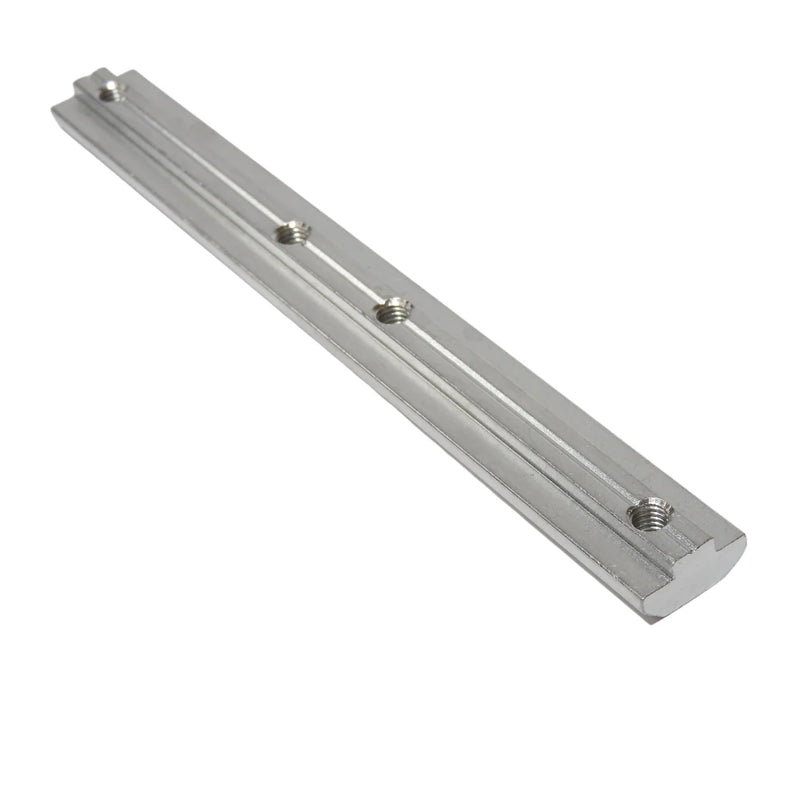

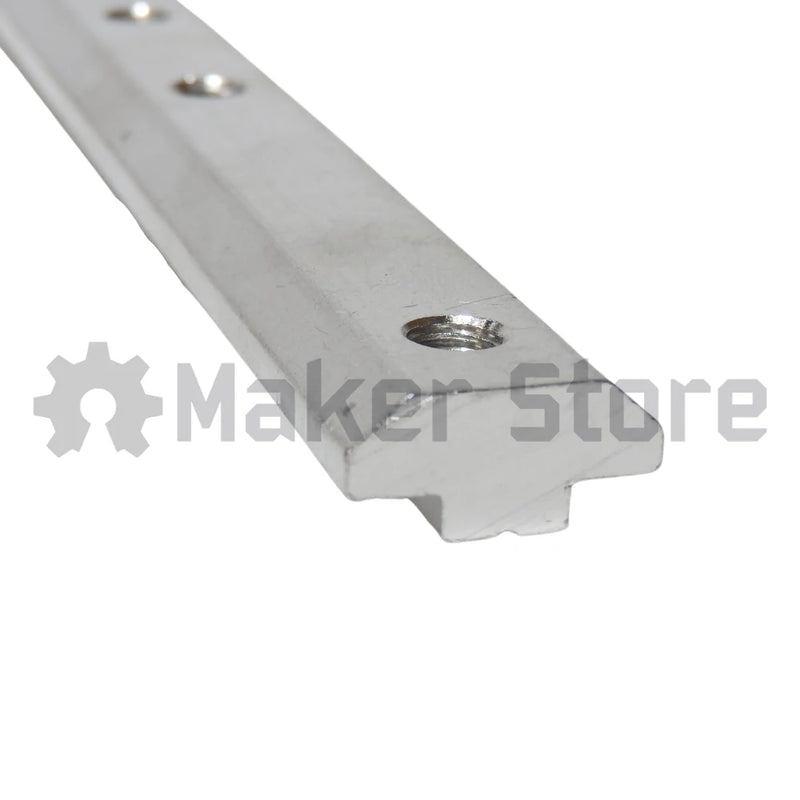

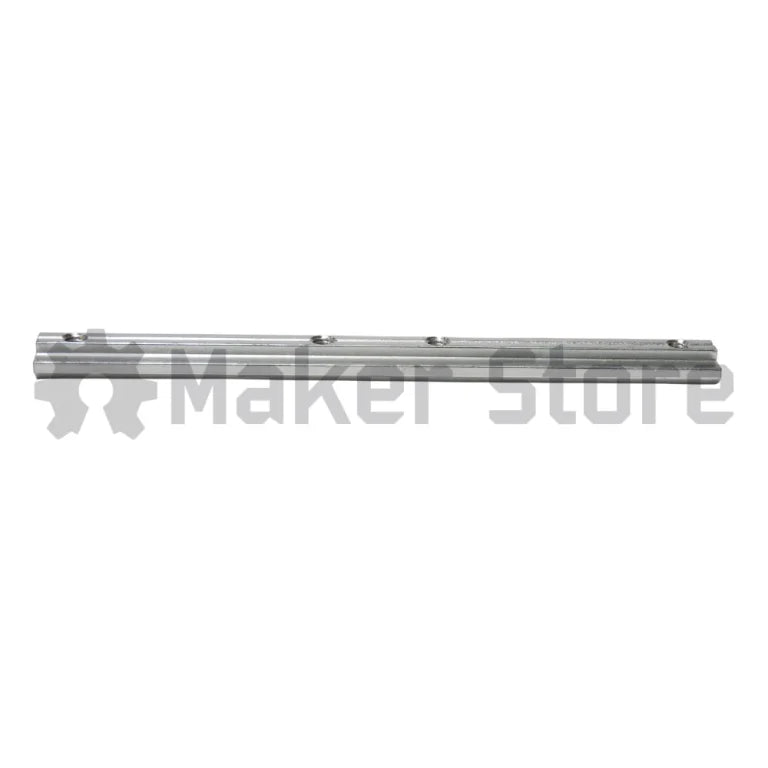

Discover the ease of extending your T-Slot structures with the 180-Degree Inside Connector, crafted from a robust zinc alloy and nickel-plated for enhanced durability. This connector is meticulously designed to slide into the T-Slot channel of one extrusion and extend seamlessly to the next, allowing you to create continuous linear structures with ease. Its slim design ensures your assembly remains sleek and elegant while providing essential structural support.

One of the standout features of this connector is its set screws, which ensure a secure and sturdy connection between extrusions. These screws lodge firmly into the T-slot profile, preventing any unwanted movement or rotation. This not only enhances the stability of your assembly but also provides a hassle-free installation experience, eliminating the need for additional hardware purchases.

Features

• Seamless Connection: Engineered to provide a straightforward solution for extending T-Slot structures linearly, creating a smooth and continuous appearance.
• Zinc Alloy Construction: Crafted from high-quality zinc alloy and nickel-plated, ensuring enhanced durability, strength, and corrosion resistance.
• Easy Assembly: Simplifies the process of creating longer lengths or continuous straight lines with T-Slot profiles, making assembly quick and efficient.

Why Choose This Connector?

• Extended Lengths: Ideal for projects requiring extended linear connections, allowing for seamless end-to-end alignments.
• Sleek Design: Its slim profile maintains the aesthetic integrity of your structure, ensuring a polished and professional look.
• Robust Performance: The zinc alloy construction guarantees durability and a reliable connection, making it an indispensable choice for various applications.

Specifications

• Material: Zinc Alloy
• Coating: Nickel Plated
• Compatibility: 40 Series T-Slot Profiles
• Weight: 62g
• Thread Size: M6
• Dimensions: 180×19.5×9.4mm

Drawings

Dive into hassle-free linear extensions with the 180-Degree Inside Connector. Its zinc alloy construction and nickel-plating guarantee durability and a sleek finish, making it a go-to choice for projects requiring extended lengths and reliable connections. Additionally, its compatibility with 40 Series T-Slot Profiles ensures versatility for a broad range of structural applications.

What makes T-Slots such an easy assembly task?

1. 40 Series T-Slot Extrusions: These are the main structural components, usually made of aluminium, with slots along their lengths that allow you to easily connect various parts and accessories.
2. 40 Series Brackets and Connectors: These are specialised components designed to fit into the T-Slot extrusions and secure them together at various angles. They include brackets, T-nuts, L-shaped brackets, and other connectors.
3. Fasteners: You can use Bolts, screws, and nuts to attach brackets and connectors to the T-Slot extrusions.
4. Tools: Basic hand tools like wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, you can easily cut the T-Slot extrusions to your desired lengths using an aluminium saw.


   ---

   Unsure if this product is compatible with our aluminium extrusions?
   Look for the Maker Store Compatibility Badges!



   The badge above indicates that this product is compatible with our 20 Series Extrusions
