7 Hole 90 Degree Joining Plate – 40 Series: Optimal Stability Meets Precise Alignment

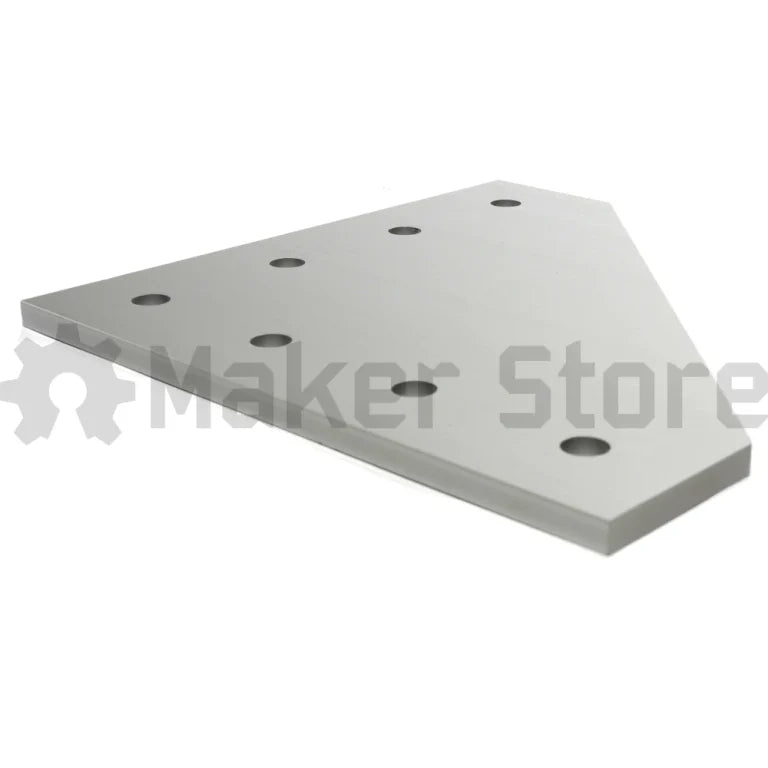

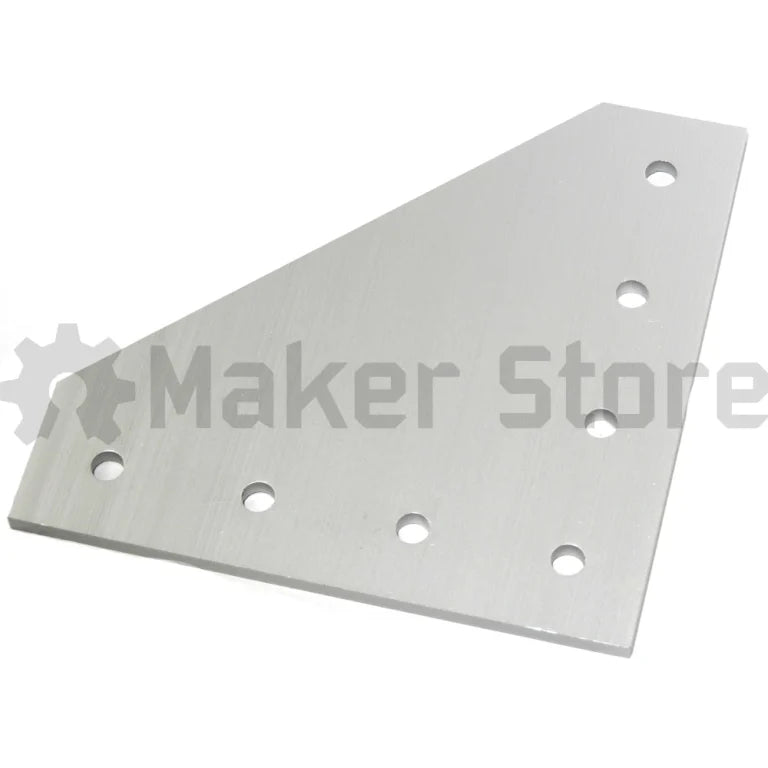

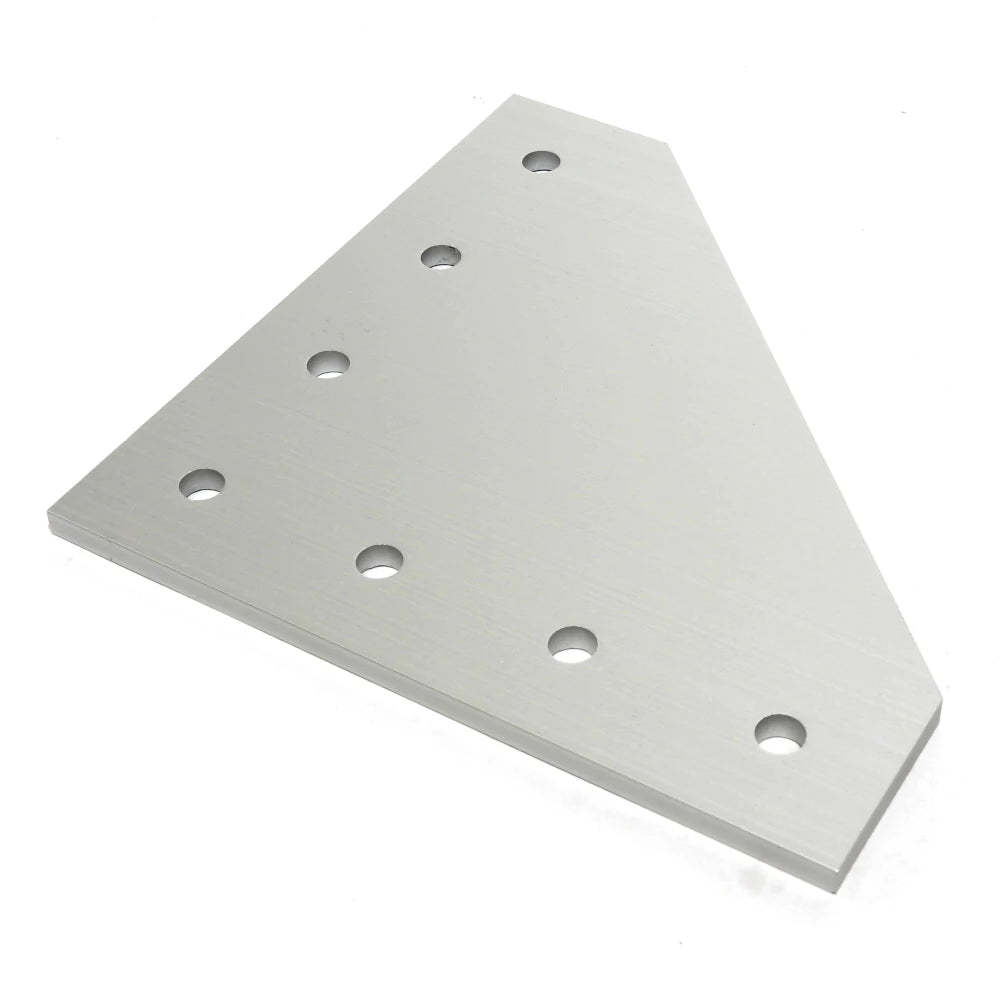

Introducing the 7 Hole 90 Degree Joining Plate – 40 Series, a meticulously crafted component designed for anchoring 40 Series T-Slot Extrusions at precise 90-degree angles. The plate boasts seven strategically positioned holes, ensuring a robust and secure connection for your structural assemblies. Moreover, the durable aluminium construction offers long-term reliability, making it a go-to choice for various construction and engineering projects.
Please Note:This 7 Hole 90 Degree Joining Plate – 40 Series is compatible with our 40 Series T-Slot Linear Extrusion. |
Features
- 7-Hole Design: Facilitates a strong and stable connection between 40 Series T-Slot Extrusions.
- Durable Aluminium Construction: Built for longevity, ensuring reliable performance through extensive use.
- Precise 90-Degree Alignment: Simplifies the assembly process, aiding in achieving accurate geometric configurations.
Why Choose This Joining Plate?
- Strength: Enhances the rigidity and stability of your T-Slot frame assemblies.
- Precision: Ensures accurate 90-degree connections, catering to your project needs.
- Reliability: A dependable connection solution for your 40 Series T-Slot Extrusions.
Specifications
- Material: Aluminium 6063-T5
- Compatibility: 40 Series T-Slot Profiles
- Weight: 279g
- Dimensions: 160x40x6mm
Drawings
| A | B | C | kg |
| 160mm | 40mm | 6mm | 0.279 |
Harness the advantage of precision and ease in assembly with the 7 Hole 90 Degree Joining Plate – 40 Series, ensuring a smooth construction process and reliable outcomes for your projects.
What makes T-Slots such an easy assembly task?
Building frames out of T-Slot extrusions is easy because they eliminate the need for specialised tools or welding, simplifying the assembly process. Building frames using T-Slot Linear Rail will require.
- 40 Series T-Slot Extrusions: These are the main structural components, usually made of aluminium, with slots along their lengths that allow you to easily connect various parts and accessories.
- 40 Series Brackets and Connectors: These are specialised components designed to fit into the T-Slot extrusions and secure them together at various angles. They include corner brackets, T-nuts, L-shaped brackets, and other connectors.
- Fasteners: Bolts, screws, and nuts are required to attach the brackets and connectors to the T-Slot extrusions securely.
- Tools: Basic hand tools like wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
